Description

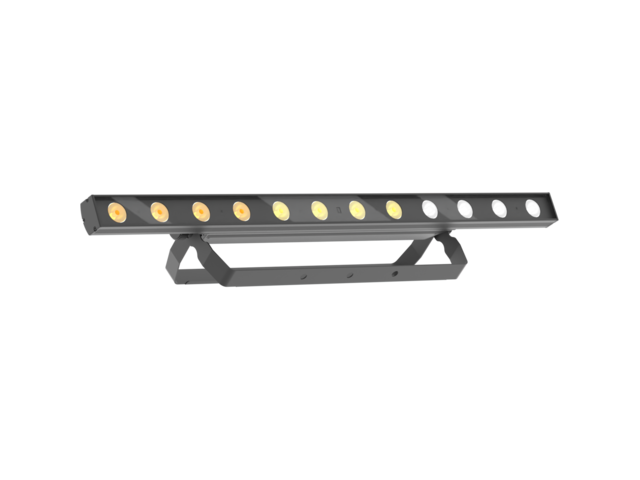

Lot de 6 barres Led 1m ProLights Lumipix 12 UQ Pro très peu utilisées comme neuves (dans leurs cartons et plastiques d'origine)LIGHT SOURCE
Source: 12x8W RGBW LEDs
Luminous flux: 2'436
Lux: 1'884lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 20°
Field angle: 36°
Lens diameter: 38mm / 1.5''
Additional optics: 45° (optional)
COLOUR SYSTEM
Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Sound mode: music activation through internal microphone and sensitivity control
CONTROL
Supported Protocols: DMX512
DMX channels: 4 / 7 / 9 / 12 / 17channel
Pixel control: 1 / 3 section control
Wireless Control: Optional proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain
BODY
Body: Sturdy die-cast aluminium body
Body colour: black
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: 0° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 73,6W
Max power consumption (at 120V): 71W
Output (at 230V): 19 units on a single power line
Output (at 120V): 7
PHYSICAL
IP rating: IP20
Cooling: fan-free with natural convection
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Seetronic powerCON IN/OUT connectors
Dimensions (WxHxD): 1000x56x168mm / 39.37''x2.2''x6.61''
Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
1 x LUMIPIX12UQPRO
1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
User Manual
