Description

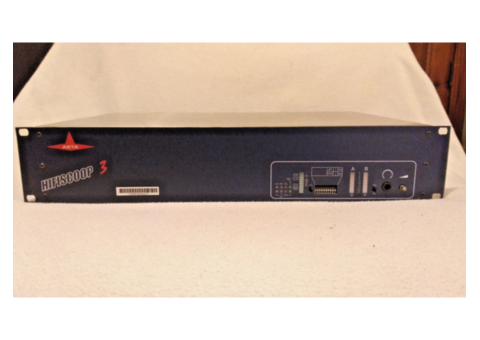

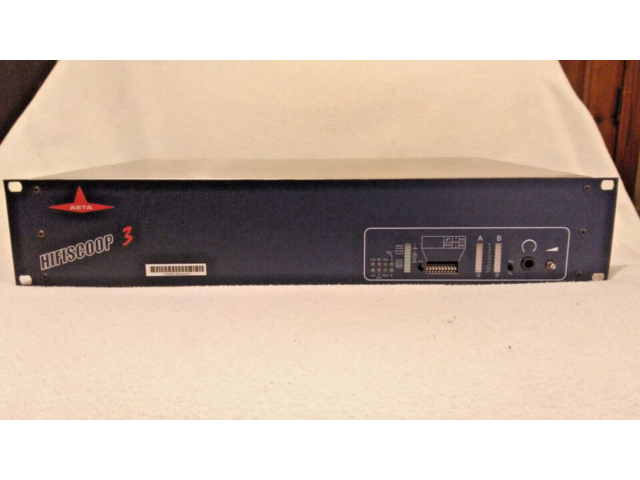

HIFISCOOP 3 en grès bon état, parfaitement fonctionnel.Audio
• Full Duplex
• Audio Interfaces
• Analog :
- Symetrical, transformer isolated
- Maximum level: 21 dBu/dBm
- Input impedance: 600 ½ or 10 k ½
- Output impedance: < 100 ½
• Digital :
- AES/EBU format
- Impendance: 110 ½
- Sampling frequency: 32, 48 KHz or synchronized on AES input
• Headphone
- 1/4" jack, adjustable output, 25 ½
• Audio Performances
• Bandwidth
- From 20 Hz to 7 kHz (FS=16 kHz) (FS=24 kHz), 15 kHz (FS=32 kHz), 20 kHz (FS=48 kHz)
• THD + N < -80dB (0.01%) 1 2 3
• Stereo
- Channel separation > 80 dB1
- Gain difference < 0.3 dB1
- Phase difference < 3°1
Notes: 1 over the full 20 Hz to 20 kHz bandwidth
2 direct connection from the A/D-D/A converter
3 input/output 1 dB below clipping level
